Top rail. Included free of charge.
Stability and movement.
The top rail, also known as the top guide, is a crucial component of our glass sliding walls. This profile ensures a sturdy and secure attachment of the sliding doors, allowing the panels to move smoothly and stably. The top rail is always included in the package as standard, ensuring a complete installation.
Dimensions
| Rail system | Height | Width |
|---|---|---|
| 2-Rails up to 2000 mm | 70 mm | 47 mm |
| 3-Rails up to 3000 mm | 70 mm | 69 mm |
| 4-Rails up to 4000 mm | 70 mm | 114 mm |
| 2-Rails up to 5000 mm | 70 mm | 136 mm |
| 3-Rails up to 6000 mm | 70 mm | 155 mm |
| 2-Rails up to 5000 mm | 70 mm | 155 mm |
| Rail systems | Customization possible for longer |
Protection against dirt and drafts.
To protect your space from penetrating air and dirt, the top rail is equipped with integrated draft brushes. These brushes ensure that your sliding wall not only functions properly but also contributes to a comfortable and clean living environment.

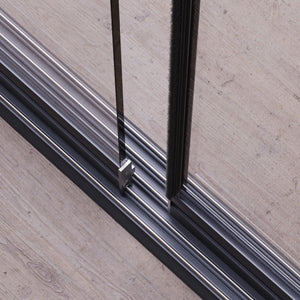

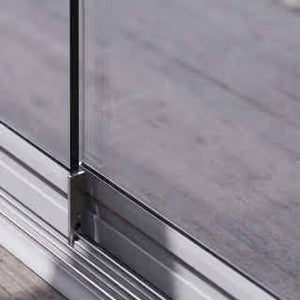

Bottom rail
Base of your sliding wall.
The bottom rail forms the foundation of your sliding wall and ensures that the panels remain firmly in place and can move smoothly. The glass, supported by wheels in the glass profile, rests on this bottom rail for smooth and stable operation.
Dimensions
| Rail system | Depth | Height |
|---|---|---|
| 2-Rails up to 2000 mm | 47 mm | 22 mm |
| 3-Rails up to 3000 mm | 69 mm | 22 mm |
| 4-Rails up to 4000 mm | 91 mm | 22 mm |
| 5-Rails up to 5000 mm | 114 mm | 22 mm |
| 6-Rails up to 6000 mm | 138 mm | 22 mm |
| 7-Rails up to 7000 mm | 161 mm | 22 mm |
| All rail systems: | Customization possible for longer | |
A more sustainable variant.
The bottom rail is supplied in your chosen RAL color, ensuring your sliding wall perfectly matches your interior. Additionally, the rail couplings are made of durable silver-colored aluminum, which makes wear less visible and ensures a longer lifespan.
The bottom rail is always included free of charge with your sliding wall, guaranteeing a complete and seamless installation.

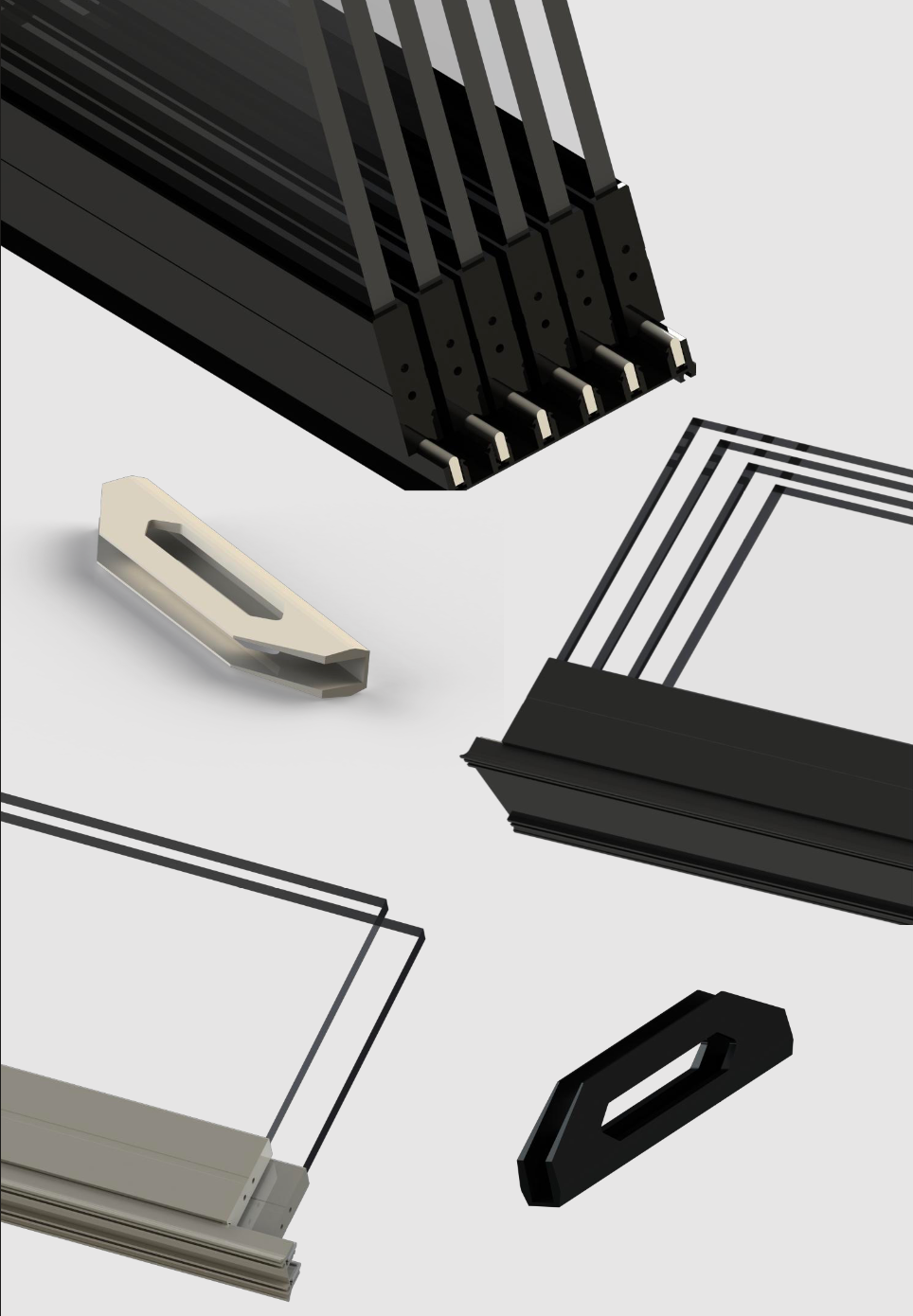

Glass profile. H-profile.
H-Profile
Our H-profile, also known as a glass profile, ensures a strong and stable connection between the glass panels of your sliding wall.
This profile offers not only a sturdy aluminium construction that is durable and resistant to wear, but also a stylish finish in one of the five available RAL colours: Traffic White RAL 9016, Cream RAL 9001, Anthracite RAL 7016, and Black RAL 9005.
Pre-assembled Option.
If you choose our pre-assembled option, we will mount the H-profile onto the glass panels for you, along with the adjustable 5 mm, double-bearing wheels (4 per panel) with an aluminium housing. This ensures smooth and stable movement of the sliding panels, so you can immediately enjoy your new sliding wall without any additional installation work.
This profile is included free of charge with every sliding wall, ensuring your sliding wall is not only functional but also aesthetically pleasing.
